Machines and Production Lines

Automotive Hose Bending and Forming

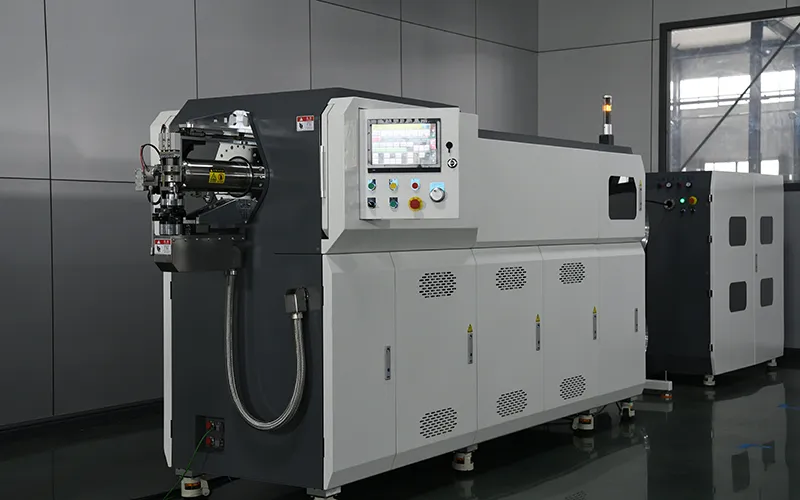

SAIMANSI S3000-22V · fully automatic CNC · Ø 6 – 22 mm plastic tube · no metal forming mould

Overview

What we offer

In automotive hose production, precise forming, uninterrupted output and the ability to switch between part geometries are what decide the result. The SAIMANSI S3000-22V fully automatic bending and forming machine is built for plastic tube from Ø 6 to 22 mm.

It combines feeding, heating, bending and cooling into a single automatic sequence and removes the need for a metal forming mould. Compared with setups that use a separate oven and metal moulds, it cuts the work of preparing, storing and changing moulds, along with intermediate handling and waiting time.

It can be planned together with multilayer and braided hose extrusion lines (DEKUMA), sitting downstream of extrusion as the forming station.

Applications

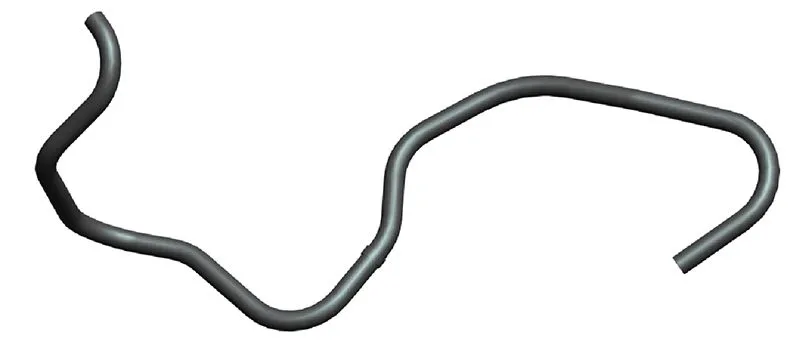

Automotive fuel lines
Brake lines
Cooling and air hose
Forming after multilayer and braided hose extrusion

Highlights

Ø 6 – 22 mm plastic automotive tube
Feeding, heating, bending and cooling in one automatic sequence
No metal forming mould required — mould preparation, storage and maintenance disappear
No separate oven; intermediate stock, handling and waiting times fall
Fast changeover for frequent product changes and varied geometries
Designed around energy consumption per finished part
Repeatable bend geometry across a production run
