Sichuan Kunwei Langsheng Extrusion

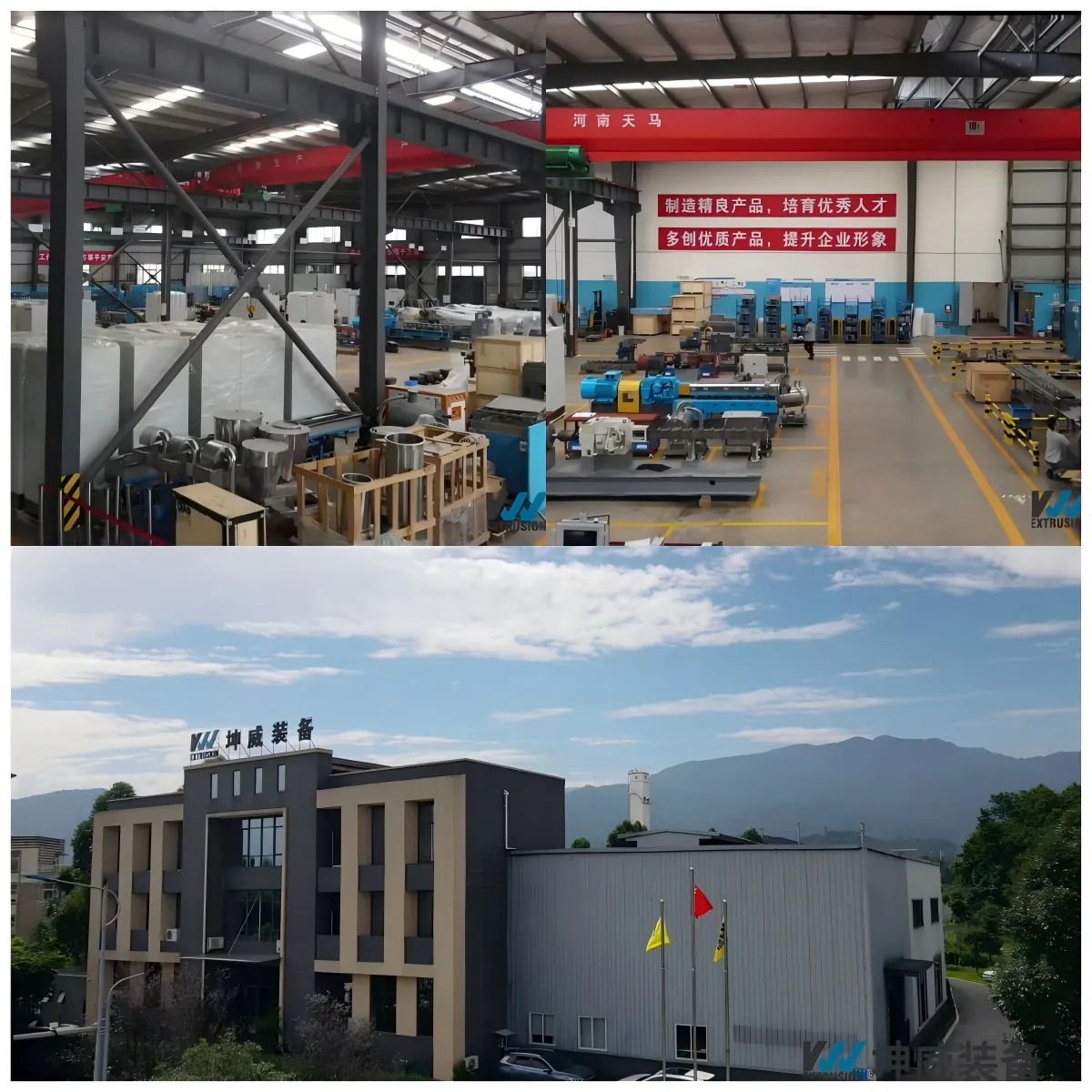

About KUNWEI

Sichuan Kunwei Extrusion is a manufacturer specialising in co-rotating twin-screw extruders, with a production capacity of more than 150 extruders a year. Its focus is high-torque twin-screw extrusion that raises customers’ throughput and product quality.

With decades of engineering experience it serves the plastics, chemical, food (including extruded feed) and pharmaceutical industries. MTU Global represents KUNWEI in Türkiye for twin-screw compounding lines and for screw, barrel, screw element and shaft spare parts.

Manufacturer website: www.kwzbcd.com

How MTU Global supports you

1Technical product and process consultancy
2Machine and line configuration
3Quotation and project coordination
4Factory visits and technical meetings
5Commissioning and service coordination
6Spare parts supply
7After-sales technical liaison

Technology

Key capabilities

Torque

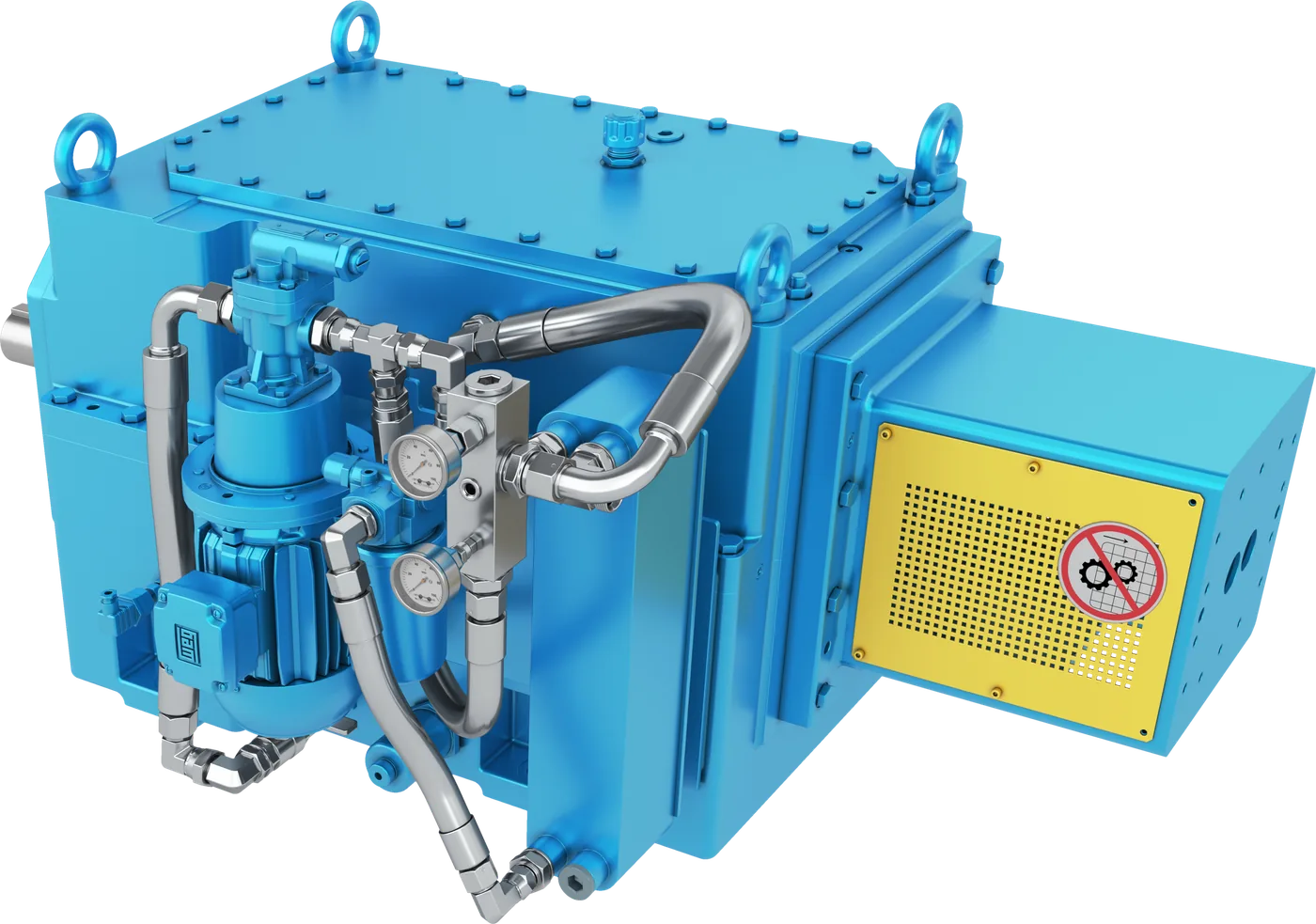

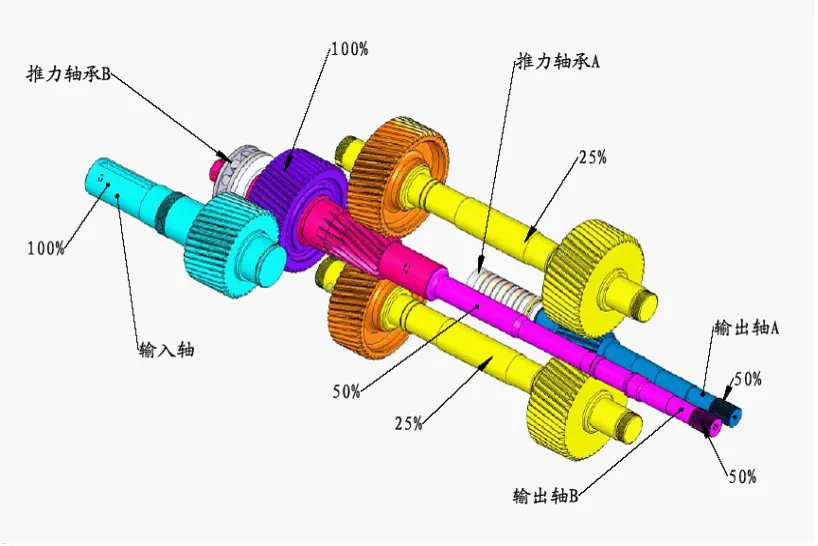

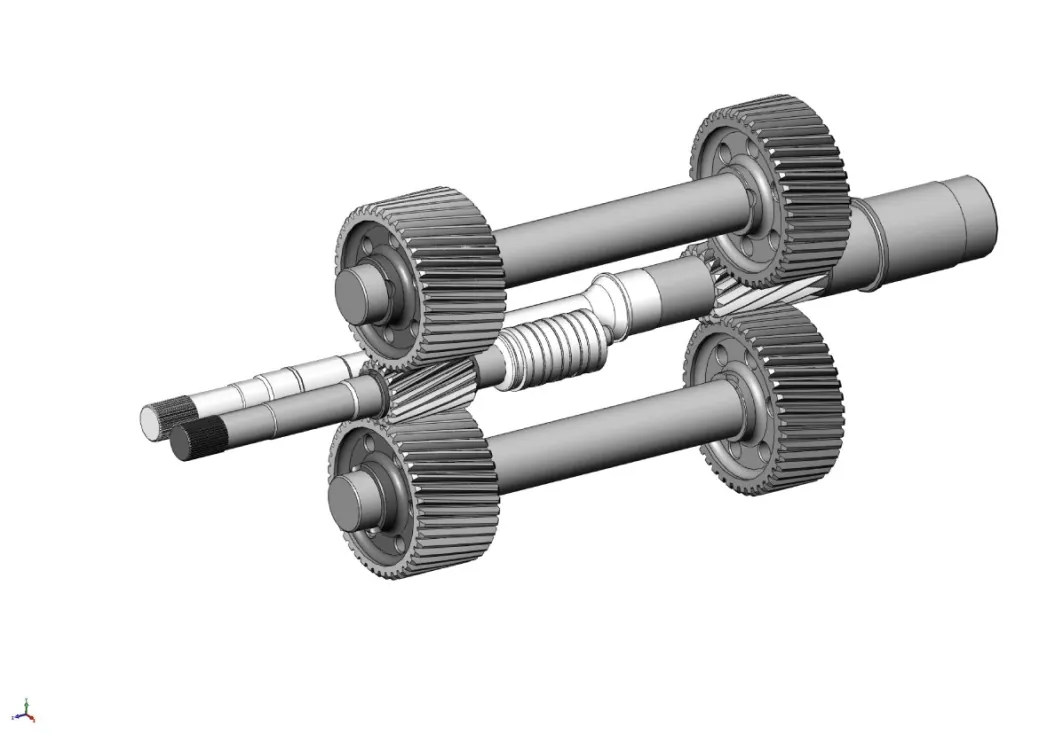

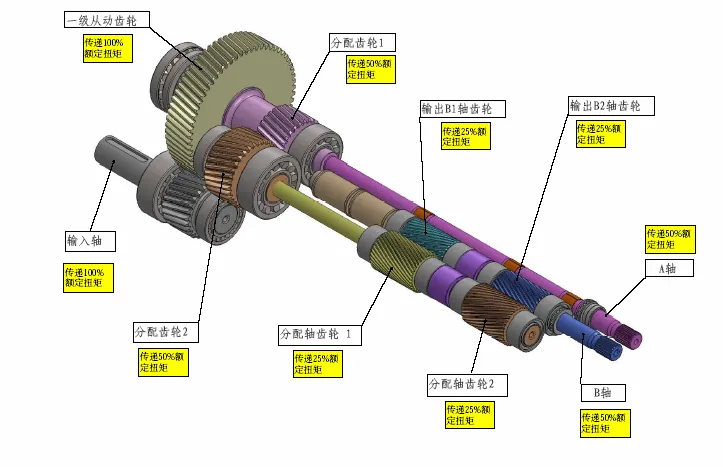

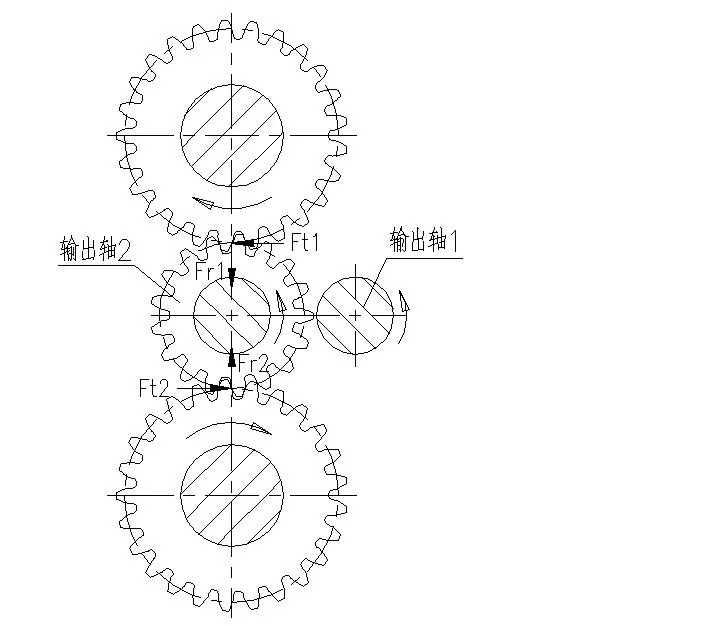

Specific torque up to 16 Nm/cm³ in the KTS M+ series; symmetric twin-path gear transmission gives high efficiency and 72,000 h service life. High torque lets suitable recipes run at lower speed with high feed rates.

Energy

Drive efficiency, screw geometry, feeding capacity and temperature control are addressed together to reduce kWh/kg per unit of output.

Biopolymers

TPS, PLA, PBAT, PBS/PBSA, PHA and starch-based blends; screw configuration, vacuum devolatilization and pelletizing options matched to the recipe.

Barrel

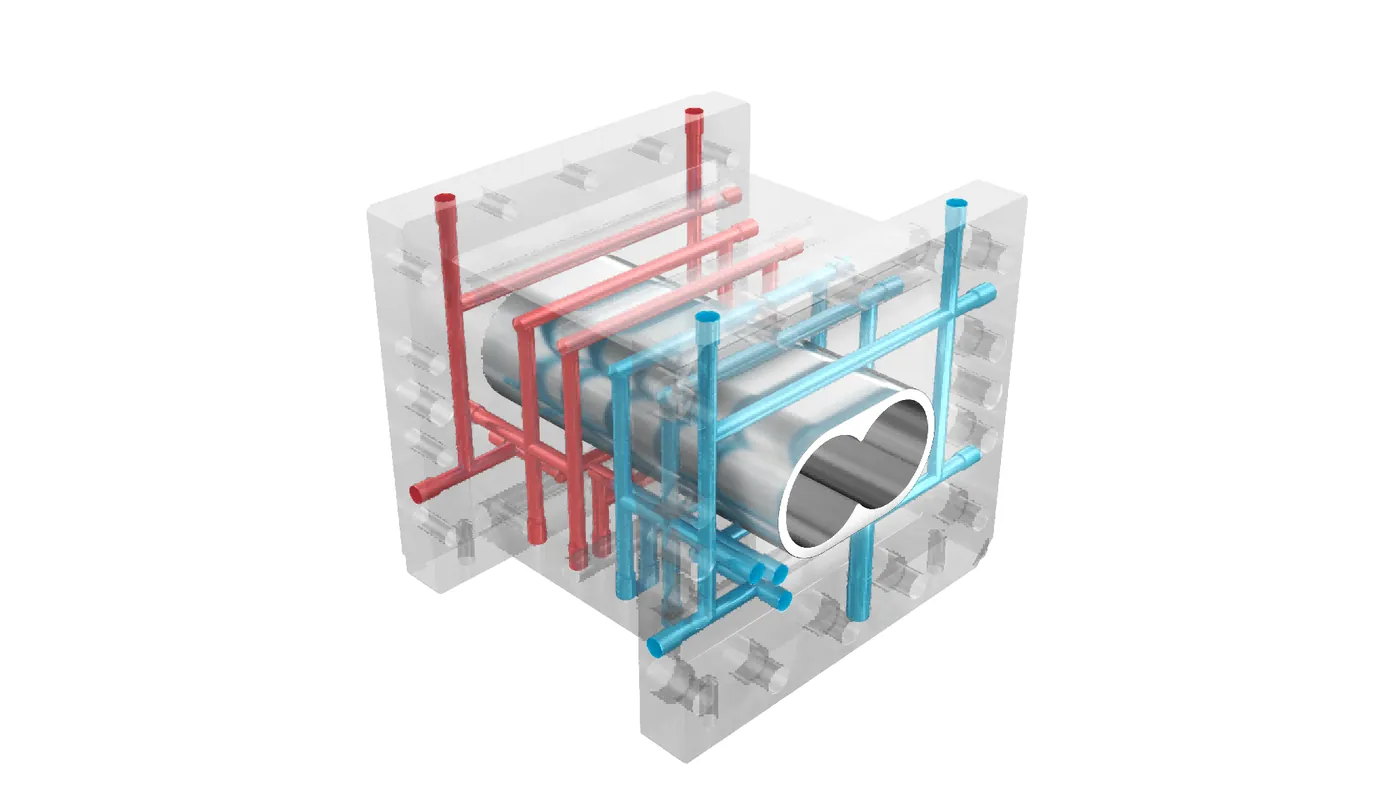

Bimetallic-lined or laser-clad barrels; uniform cooling through spiral water channels, removable plugs.

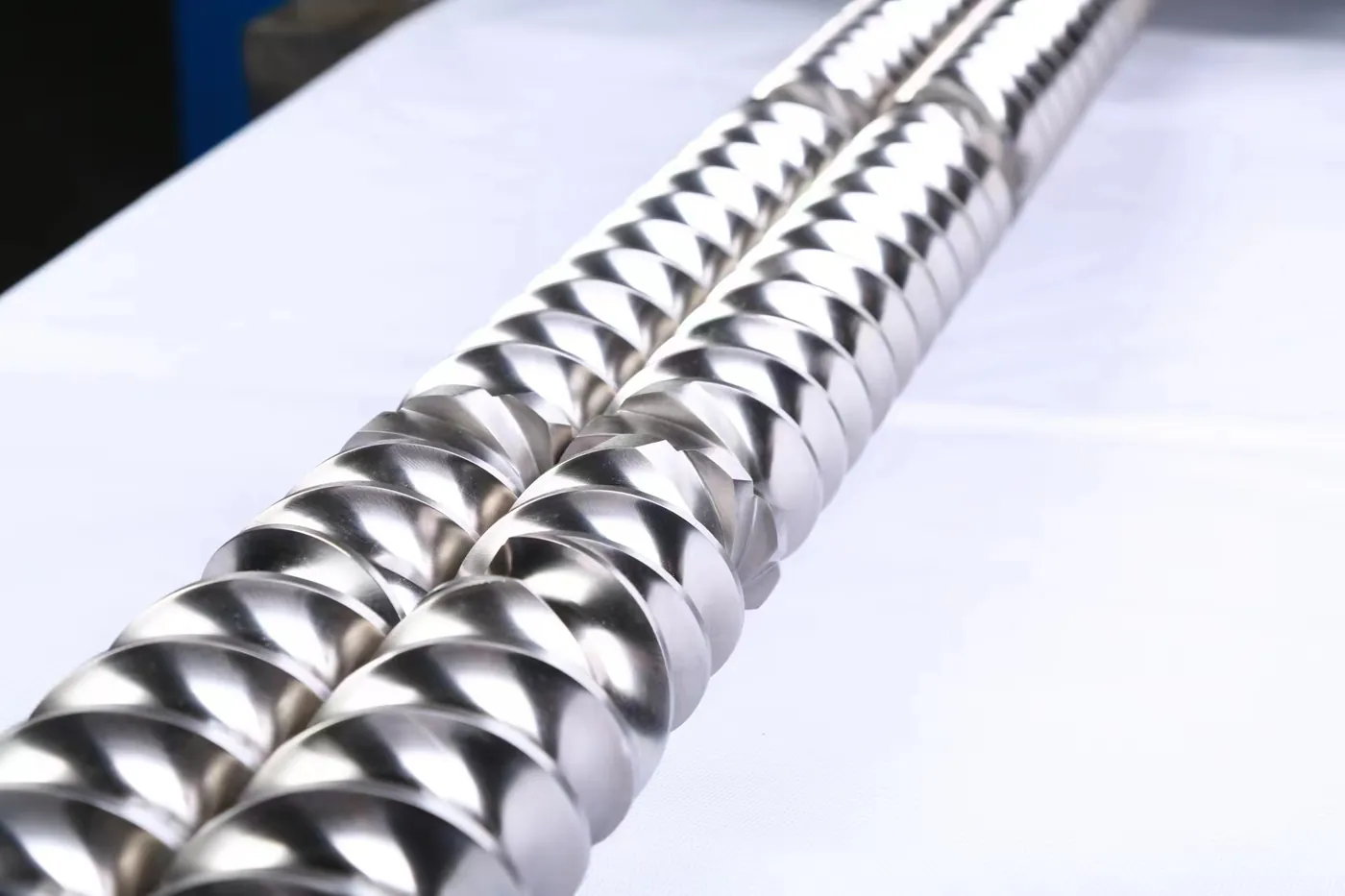

Screw

KT18 steel shafts (more than twice the rated safety value) and a full range of powder-metallurgy screw elements.

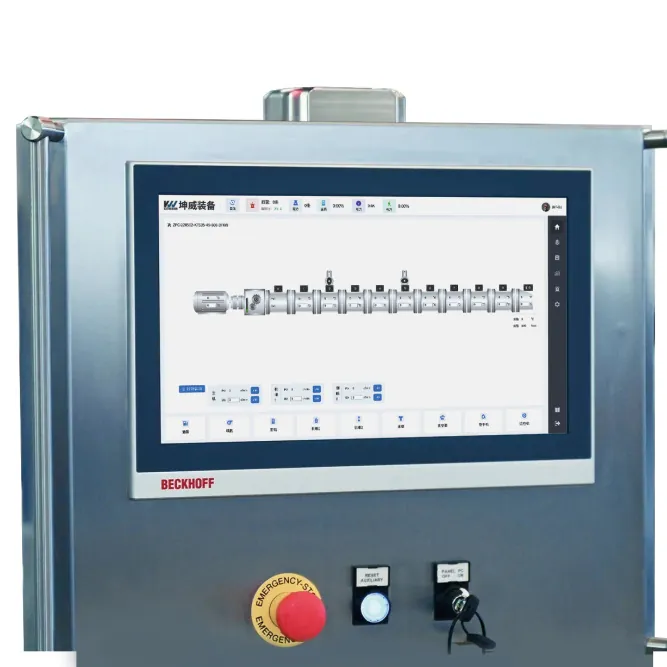

Control

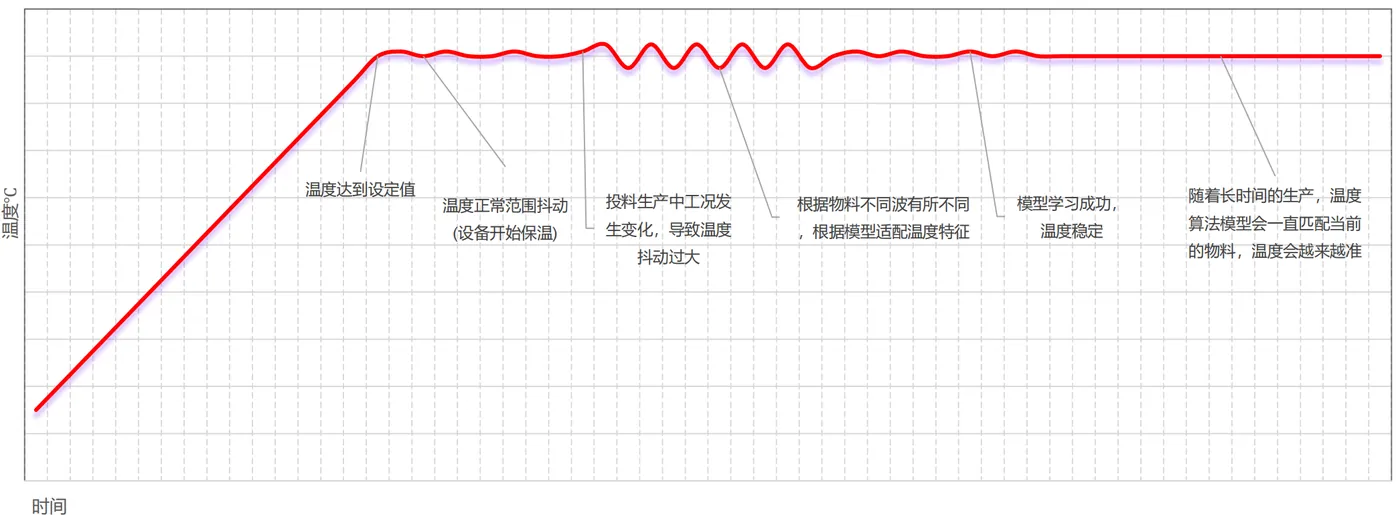

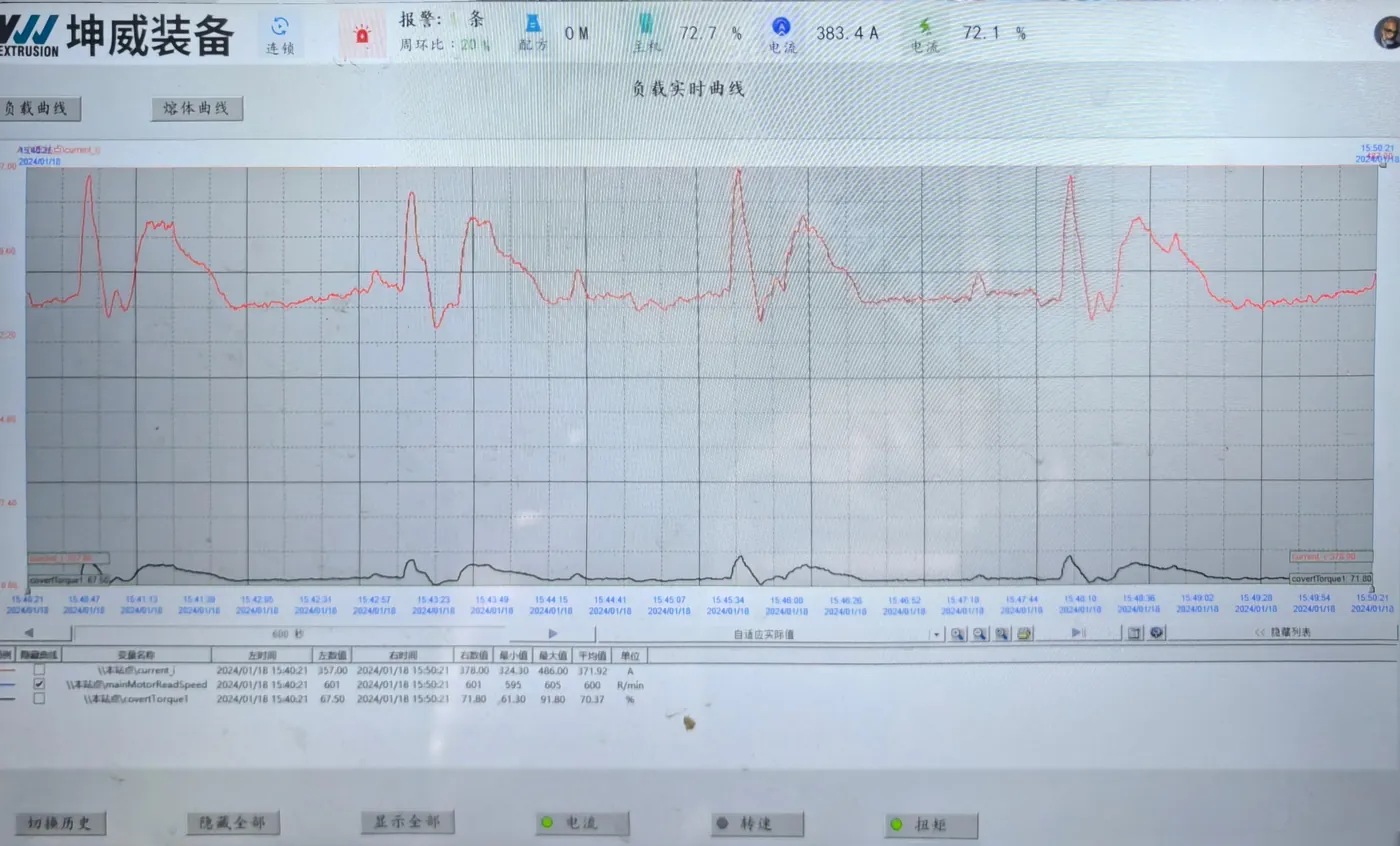

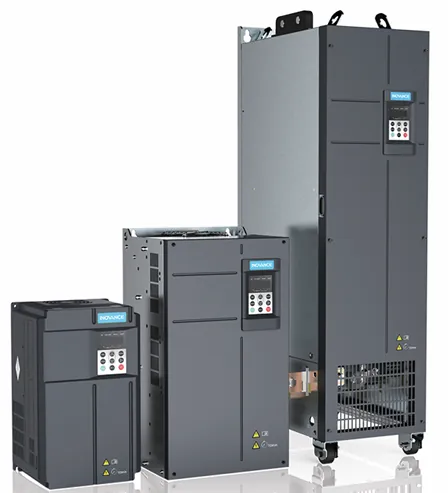

EtherCAT communication (< 1 ms), frequency converter model matching, automatic shutdown on torque anomaly; self-learning temperature control.

Series

KTS high performance, KTD high free volume (deep flight, Do/Di 1.68), ECO economy series, KTS HME pharmaceutical series.

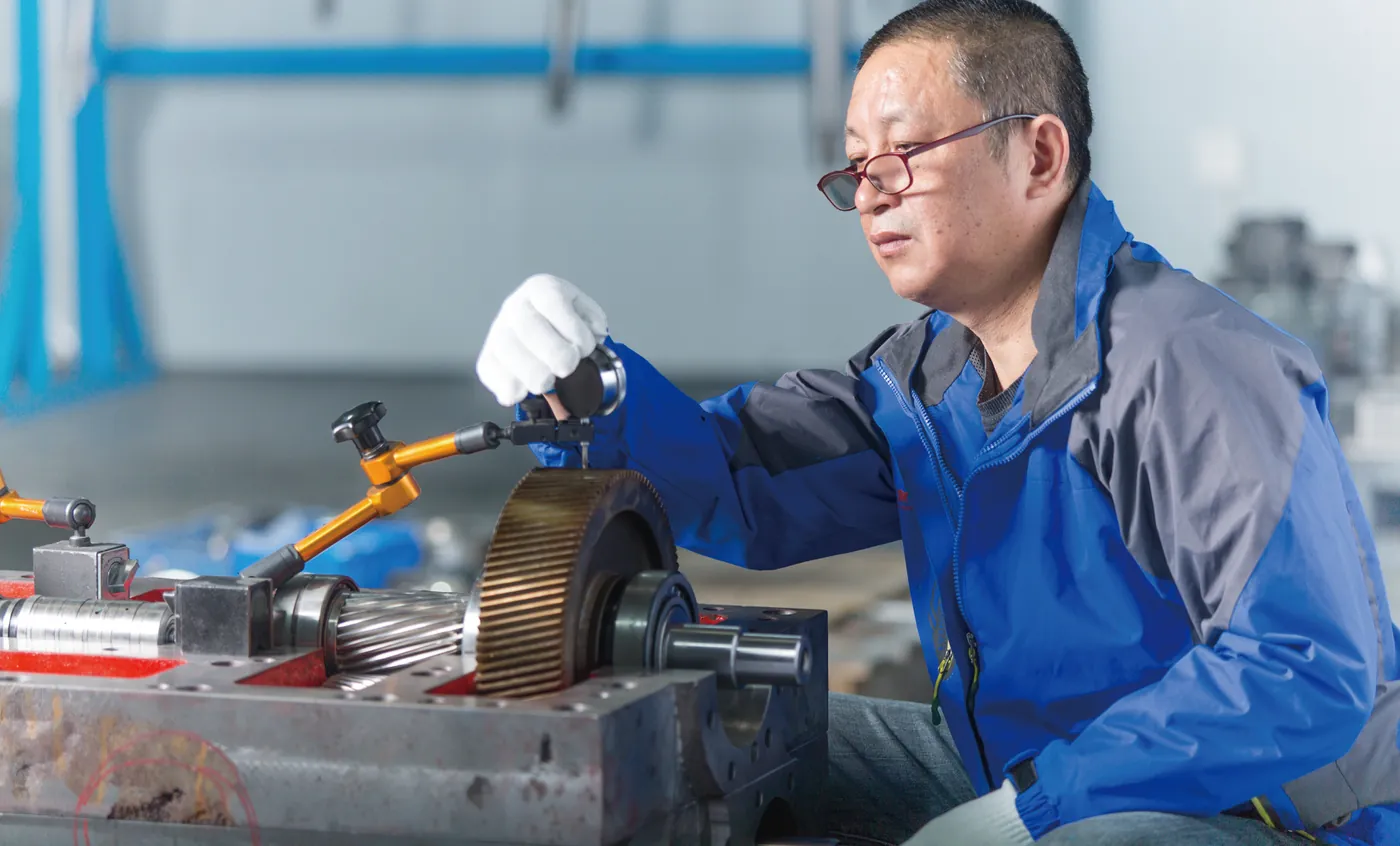

Service

Turnkey compounding plant, process know-how, spare parts stock, upgrades and technical consultancy.

Product range

Series and systems

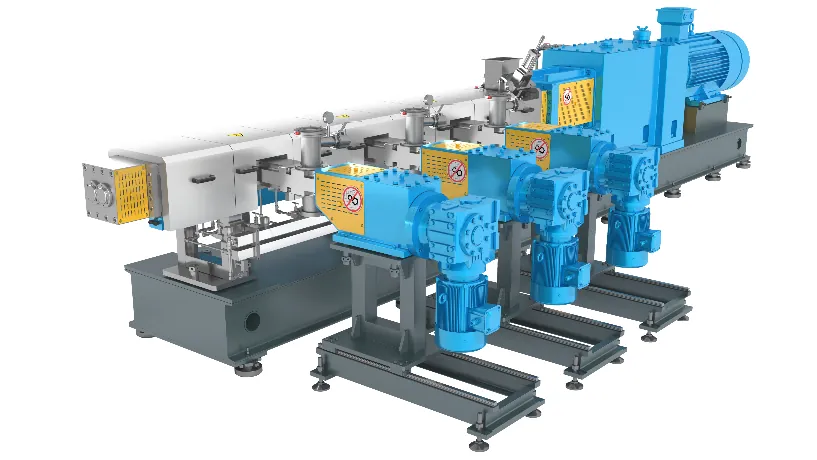

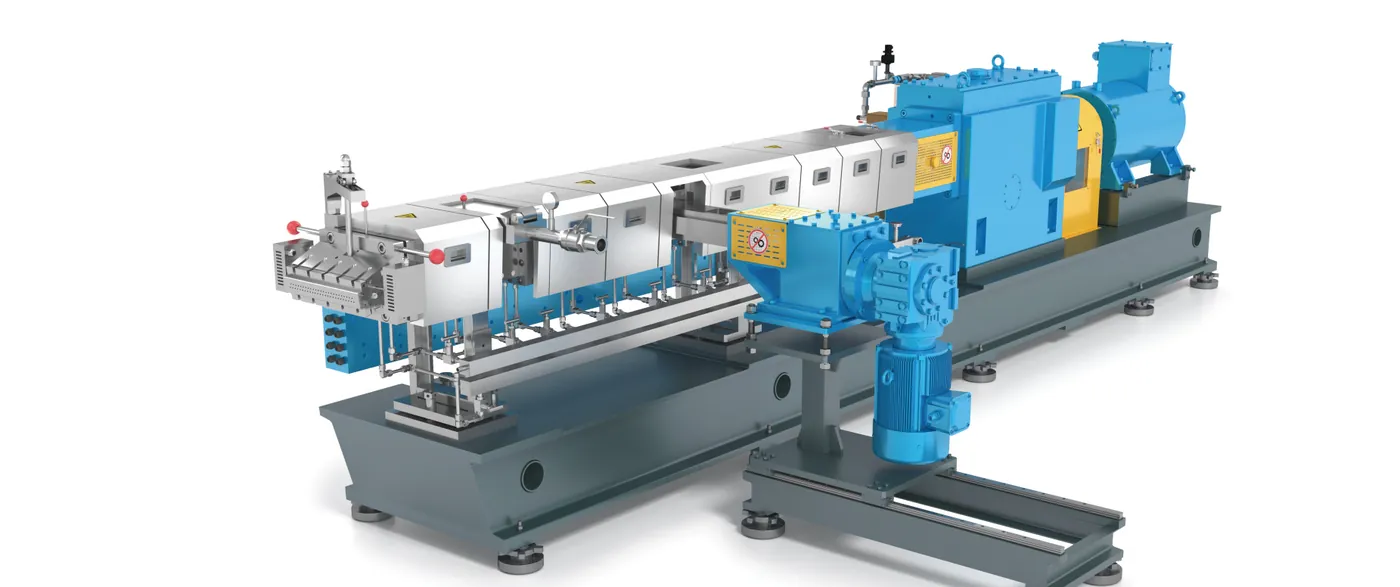

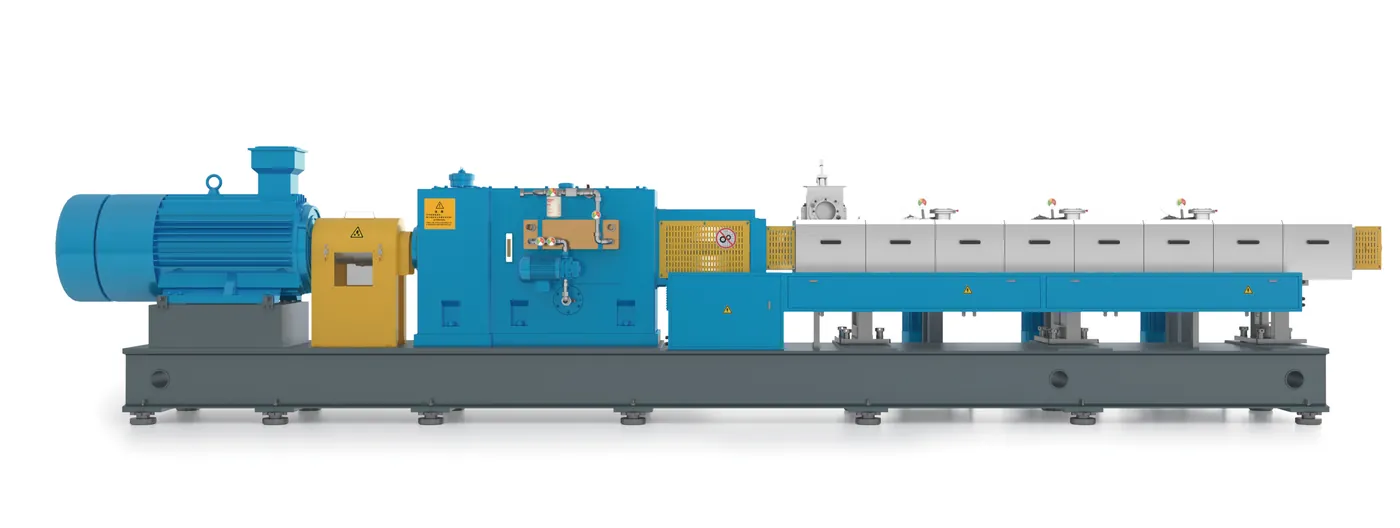

KTS — high performance

Do/Di 1.55, 14 Nm/cm³ specific torque, up to 1,200 rpm. Ø 27 – 175 mm.

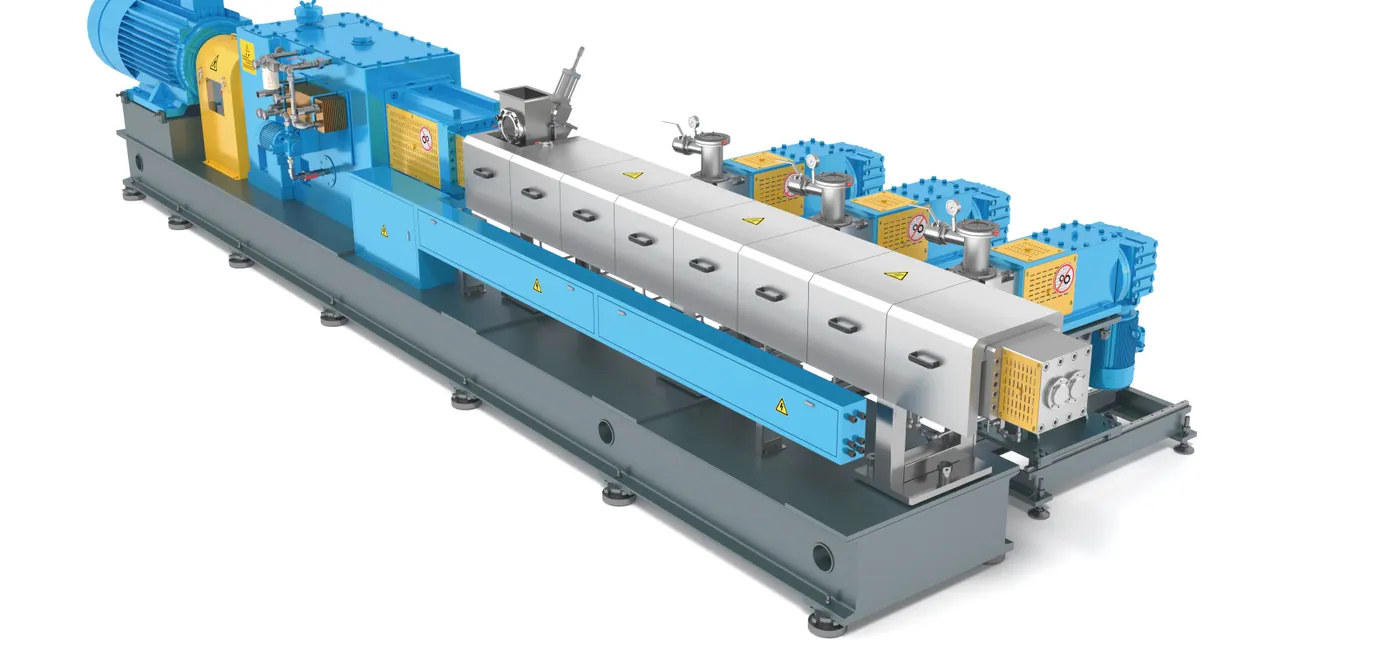

KTD — high free volume

Deep flight, Do/Di 1.68. Higher throughput at the same diameter, lower melt temperature.

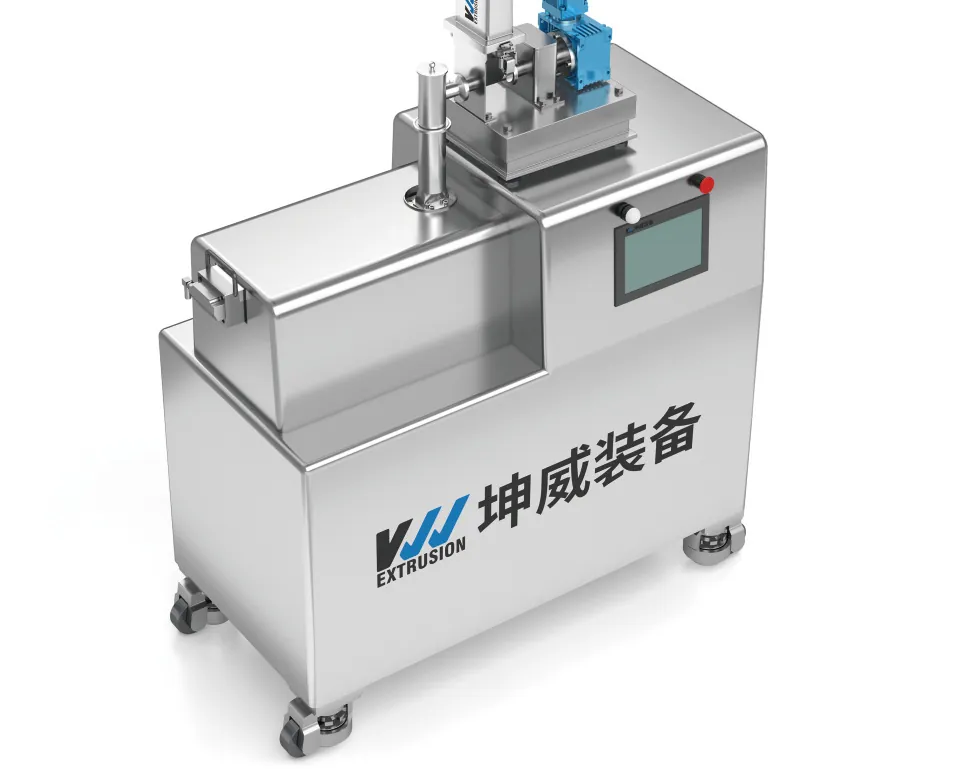

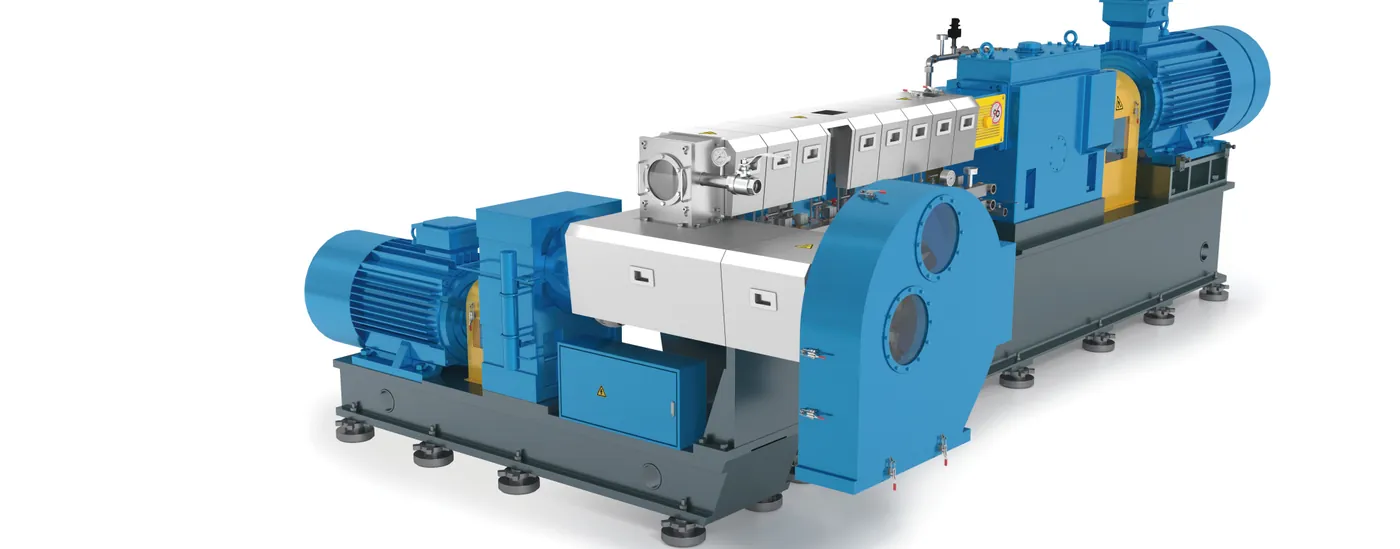

KTS HME — pharmaceutical

Excellent API dispersion, precise temperature control, easy cleaning. KTS 8 – 20.

ECO — economy series

9 Nm/cm³, Ø 35 – 96 mm; twin-screw plus single-screw (T+S) cascade line option.

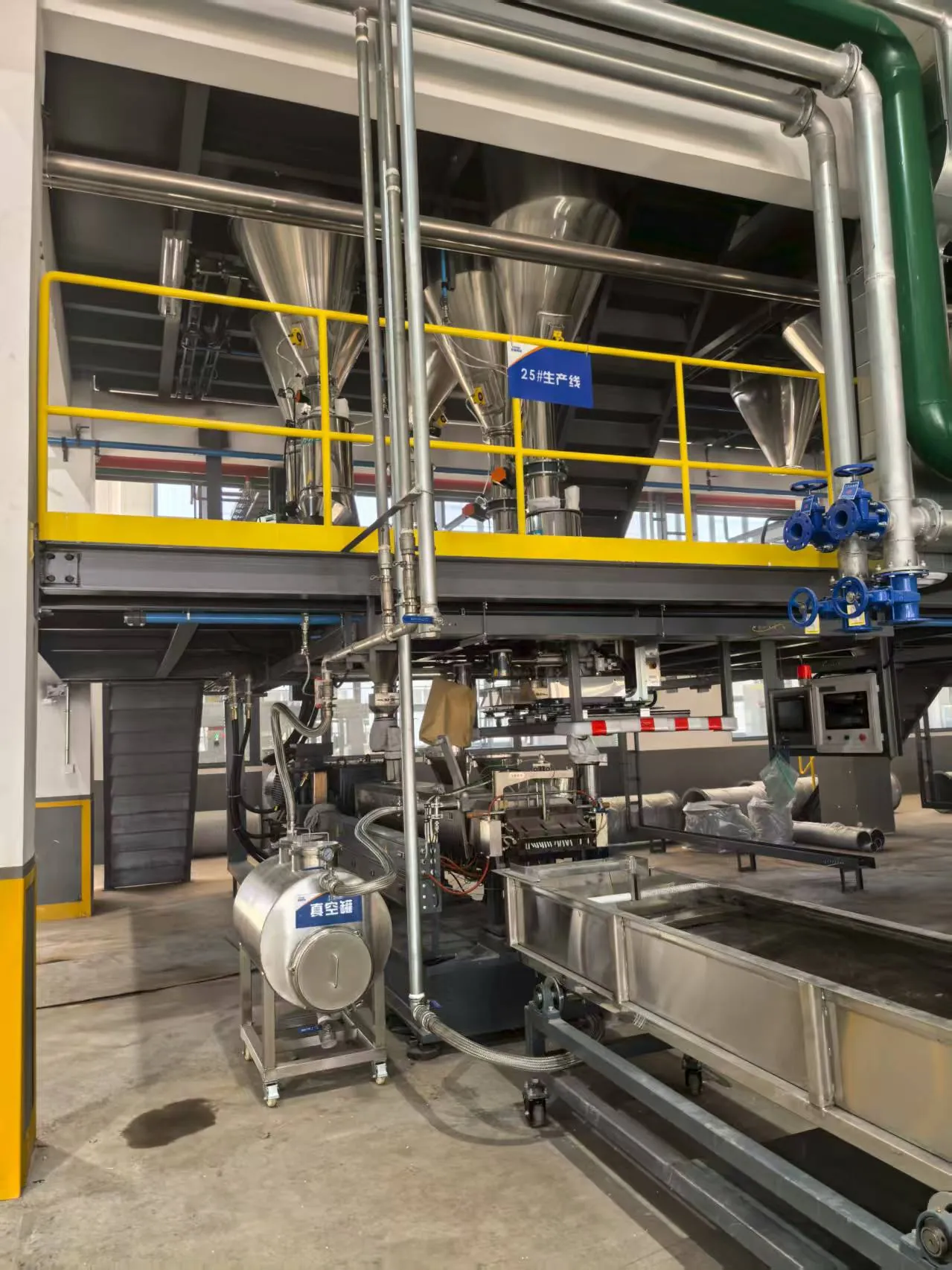

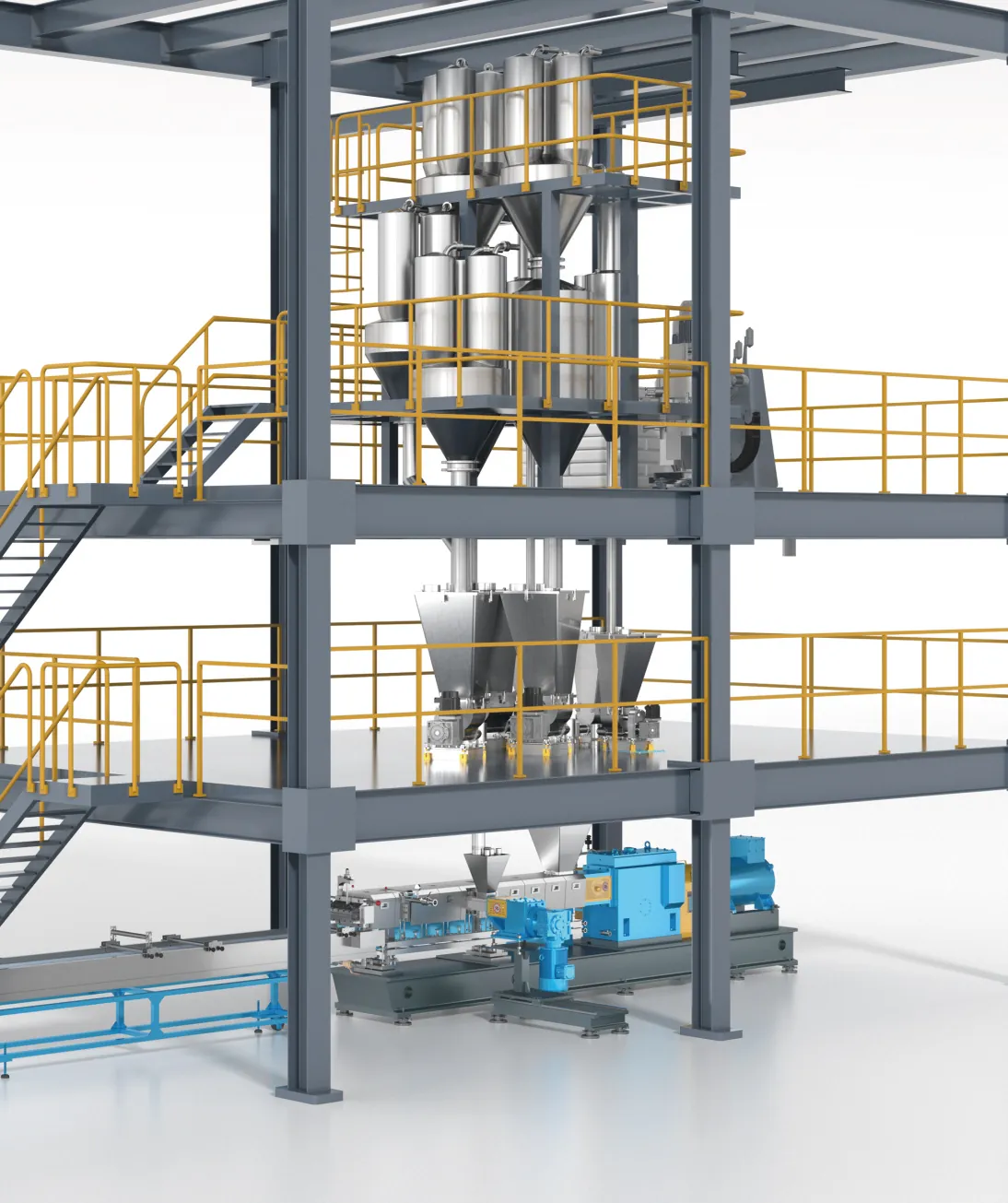

Turnkey compounding plant

Consultancy, process design, installation, commissioning and training; feeding, dosing, pelletizing and packaging included.

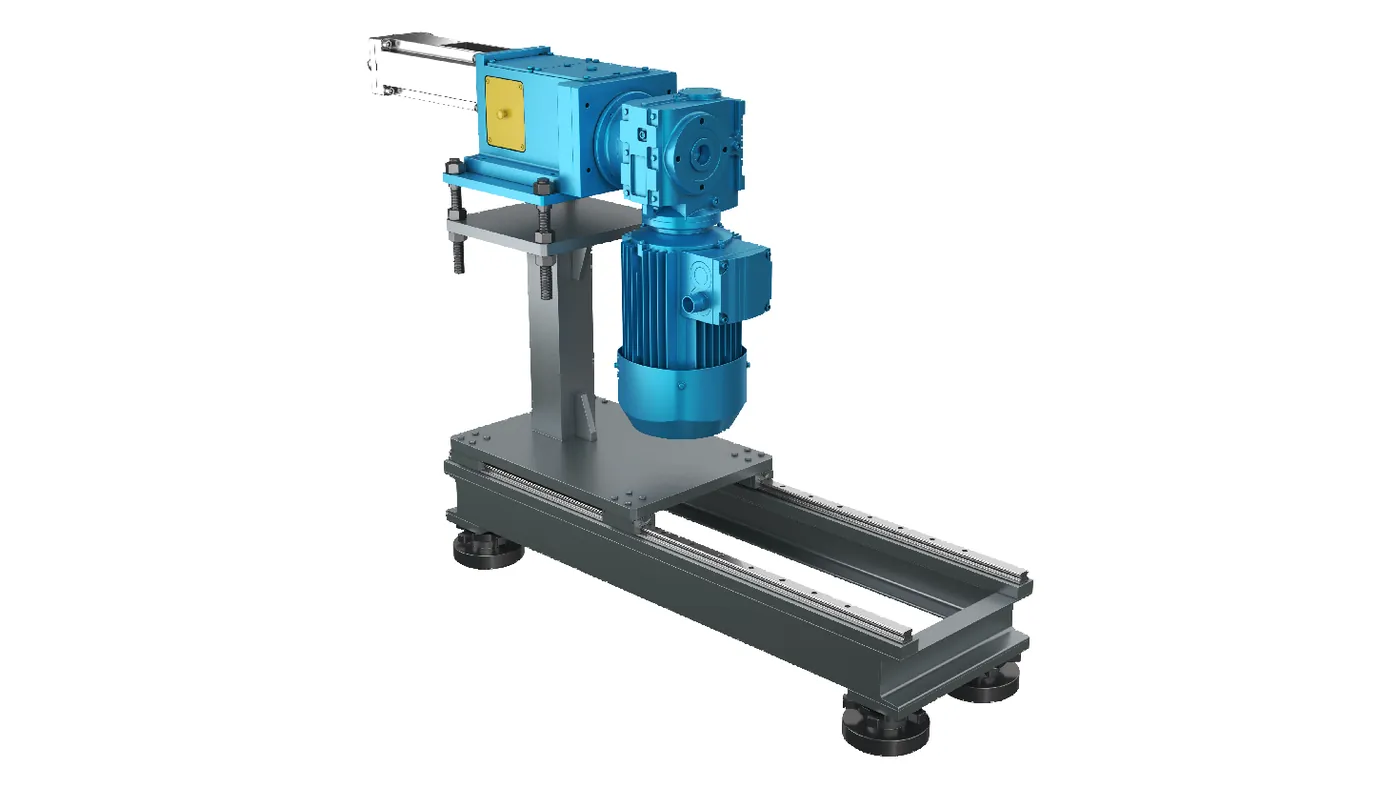

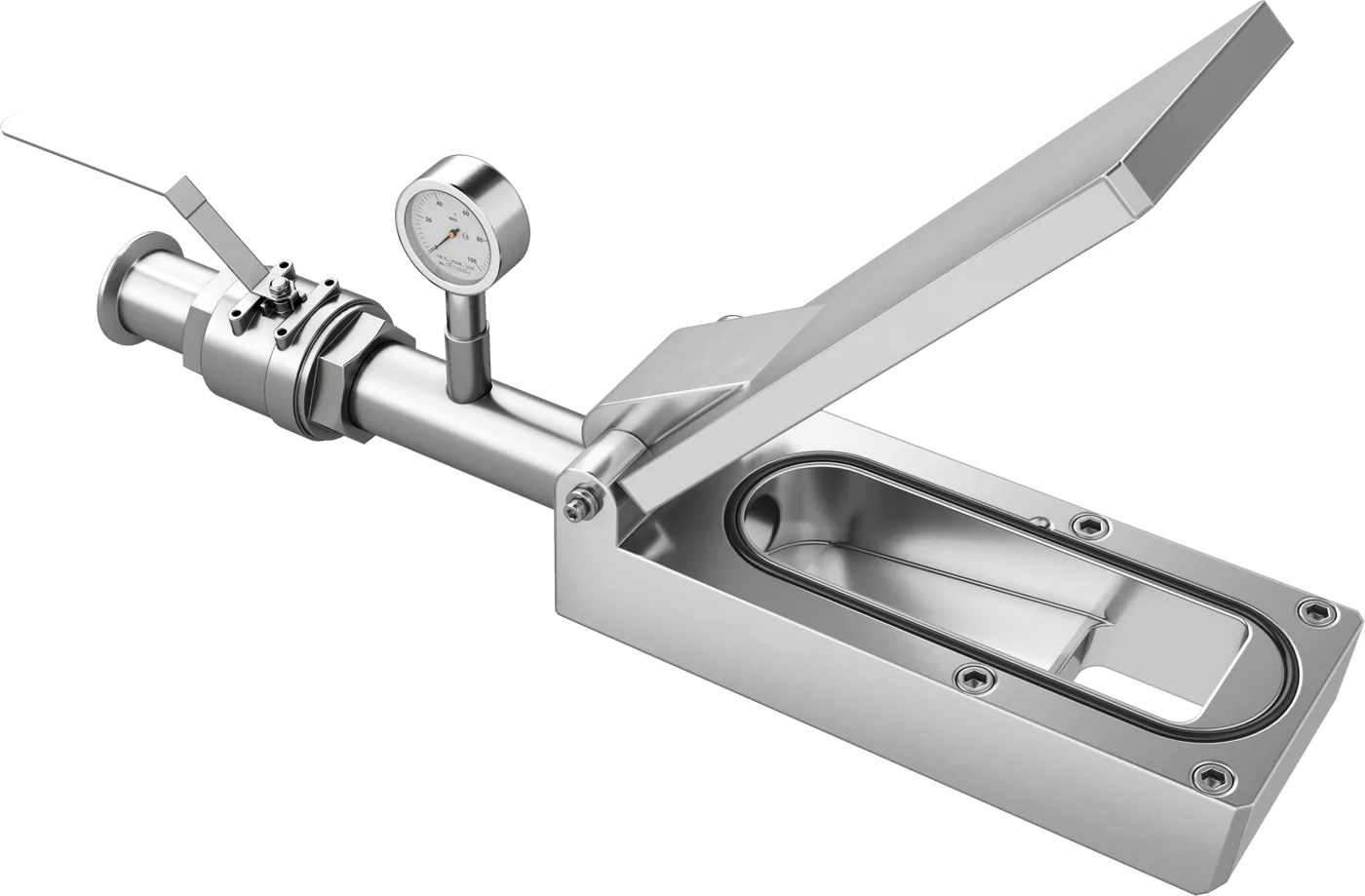

Force-feeding side feeder

For low-bulk-density powders such as talc, MCA, Mg(OH)₂, Al(OH)₃, carbon black and mica.

Manufacturer data

The difference in numbers

Effect of free volume ratio on throughput

At the same 132 kW; Do/Di 1.69 compared with 1.55.

Do/Di 1.69 — 0.20 kWh/kg 660kg/h
Do/Di 1.55 — 0.24 kWh/kg 550kg/h

Effect of channel depth on melt temperature

Deep flight and high torque heat the melt less for the same duty.

ECO · ε=9 · Do/Di 1,55 285°C
KTS · ε=11 · Do/Di 1,55 276°C
KTS · ε=14 · Do/Di 1,55 256°C
KTD · ε=14 · Do/Di 1,71 245°C

Force-feeding side feeder — PP + 2500 mesh talc

Feed rate against a standard side feeder (upper values).

50 mm line — standard 70kg/h
50 mm line — KUNWEI 125kg/h
65 mm line — standard 100kg/h
65 mm line — KUNWEI 179kg/h
75 mm line — standard 150kg/h
75 mm line — KUNWEI 268kg/h

Technical data

All models

KUNWEI catalogue. KTS 8–20 is the laboratory range and KTS HME the pharmaceutical series. ECO T+S: twin-screw (T) plus single-screw (S) cascade line.

Model	Do/Di	Specific torque [Nm/cm³]	Max. speed [rpm]	Max. torque [Nm]	Motor [kW]
KTS 8	1.55	5	600	2× 2	0.2
KTS 11	1.55	5	600	2× 3	0.35
KTS 18	1.55	5	600	2× 16	2.0
KTS 20	1.55	5	600	2× 22	2.8
KTS 27	1.52	11	1200	2× 120	30
KTS 35	1.51	13.5	1200	2× 358	90
KTS 50	1.55	14	1200	2× 995	250
KTS 65	1.55	14	900	2× 1883	355
KTS 75	1.51	14	900	2× 2918	550
KTS 96	1.55	14	600	2× 6367	800
KTS 110	1.55	14	400	2× 10744	800
KTS 135	1.55	14	400	2× 16713	1400
KTS 145	1.55	14	300	2× 22283	1400
KTS 175	1.55	14	300	2× 38200	2400
KTD 35	1.68	11.3	1200	2× 298	75
KTD 50	1.68	11.3	1200	2× 843	250
KTD 65	1.68	11.3	900	2× 1671	315
KTD 75	1.68	11.3	900	2× 2445	450
KTD 96	1.68	11.3	600	2× 5457	700
KTD 110	1.68	11.3	400	2× 8953	800
ECO 35	1.51	9	900	2× 238	45
ECO 50	1.55	9	900	2× 584	110
ECO 65	1.55	9	900	2× 1167	220
ECO 75	1.51	9	900	2× 1883	355
ECO 96	1.55	9	600	2× 3979	500
ECO 50/150 (T+S)	—	—	600 / 70	—	90 / 45
ECO 65/180 (T+S)	—	—	600 / 70	—	160 / 55
ECO 75/200 (T+S)	—	—	600 / 70	—	250 / 75
ECO 96/250 (T+S)	—	—	600 / 70	—	500 / 110
